| SPECIFICATIONS |
| PACKING CAPACITY |
420 Bag/h |
800 Bag/h |
| WEIGHING RANGE |
200kg~20kg |
200kg~40kg |
| WEIGHING METHOD |
Load cell type |
| PACKING MATERIALS |
POWER, SMALL PARTICLE |
| MINIMUM DISPLAY |
0.2g |
| SCHEDULE FUNCTION |
Save about 20type of weighing condition |
| POWER SOURCE |
AC 100/200V 60Hz |
|
| |
 |
| MAIN SPECIFICATIONS |
| FILLING QUANTITY |
500kg or 1000kg |
| CAPACITY |
1000kg/ B x 40B/ Hr |
| at least 500kg / B x 40B/ Hr |
| (Polypropolene pellet) |
| ACCURACY |
± 1/1000 |
| MATERIAL TO BE WEIGHED |
grain |
| AIR SOURCEG |
at least |
| 5kg / ㎠G 1200NL/min |
| POWER SOURCE |
electric power |
| AC200V±10%, 50/60Hz |
| control part |
| AC100V±10%, 50/60Hz |
|
 |

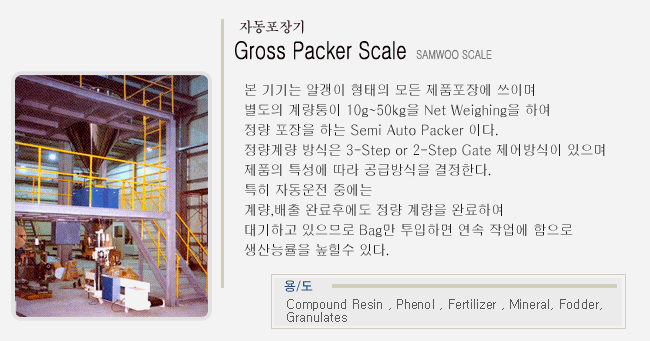

| 특 징 |
| 공급부에 Screw Feeder를 적용하여 피계량물이
좋지 않은 것이라도 원활하고 신속한 처리가 가능하다 |
| SPECIFICATIONS |
| PACKING CAPACITY |
420 Bag/h |
| WEIGHING RANGE |
10kg ~ 30kg |
| WEIGHING METHOD |
Load cell type |
| PACKING MATERIALS |
FERTILIZER, SMALL PARTICLE |
| POWER SOURCE |
AC100/200V 50/60Hz |
|
